TILT & TURN HANDLE

Series 500-DA

Narrow Sightlines
Multipoint Lock Performance
Structurally Glazed

The Skyline Series 500-DA windows are a family of our most versatile products. As the window marketplace has modernized, it has become more demanding. Designers call for windows to be larger to enhance views; for sound deadening glass to keep the interiors peaceful; and lastly they call for the windows to operate smoothly and effortlessly. While many windows will have to sacrifice one of these features for another, the Skyline Series 500-DA has it all. Skyline’s unique Tilt and Turn window performs at next to zero leakage rates with very large sizes and heavy laminated glass packages; all with ADA friendly hardware. If you’re seeking the strongest most powerful modern designs, see what the Skyline Series 500-DA has for you.


Overview

  • Architectural/Commercial/Historical

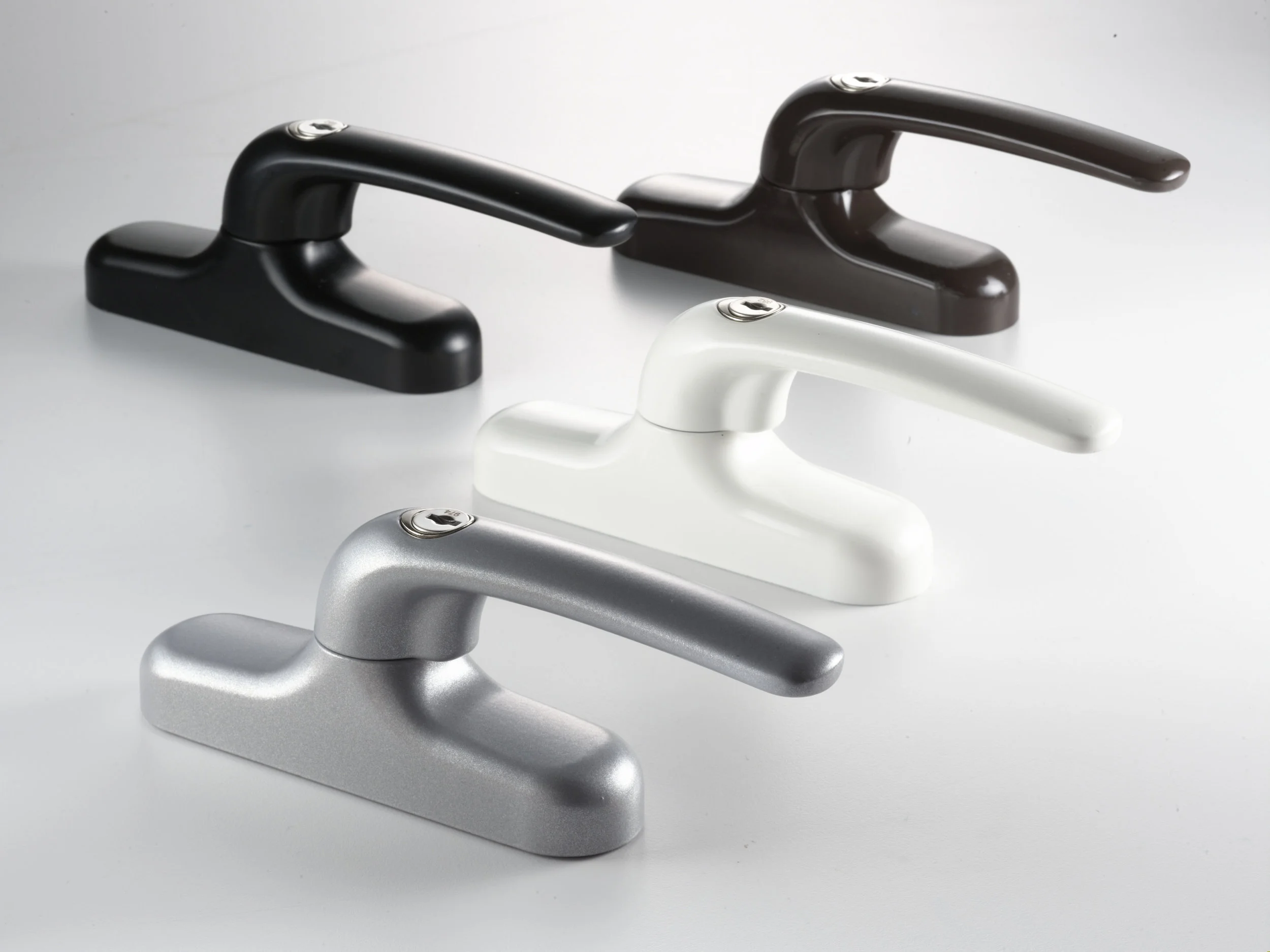

  • Key capture hardware available for maintenance personnel and child safety

  • Structural and bead glazed options available

  • Narrow uniform profiles available on the structurally glazed version

  • Extruded corner key construction

  • Glazing: 1”-1 ½” insulating glass

  • Improved thermal performance

  • Improved acoustical ratings

  • Triple muntin capability, full simulated divided lites

  • Continuous gasketed weather-stripping for unsurpassed performance

  • Pressure equalized frame design

  • 2 ¾” or 3 ” frame depths available

  • Thermally insulated I-Strut frames

  • Wide vary of hardware options


Finishes

STANDARD

white interior / white exterior

white interior / bronze exterior

white interior / black exterior

Clear anodized interior / clear anodized exterior

bronze interior / bronze exterioR

FINISH RATINGS

AAMA 2603
AAMA 2604
AAMA 2605

**Custom color applications available**

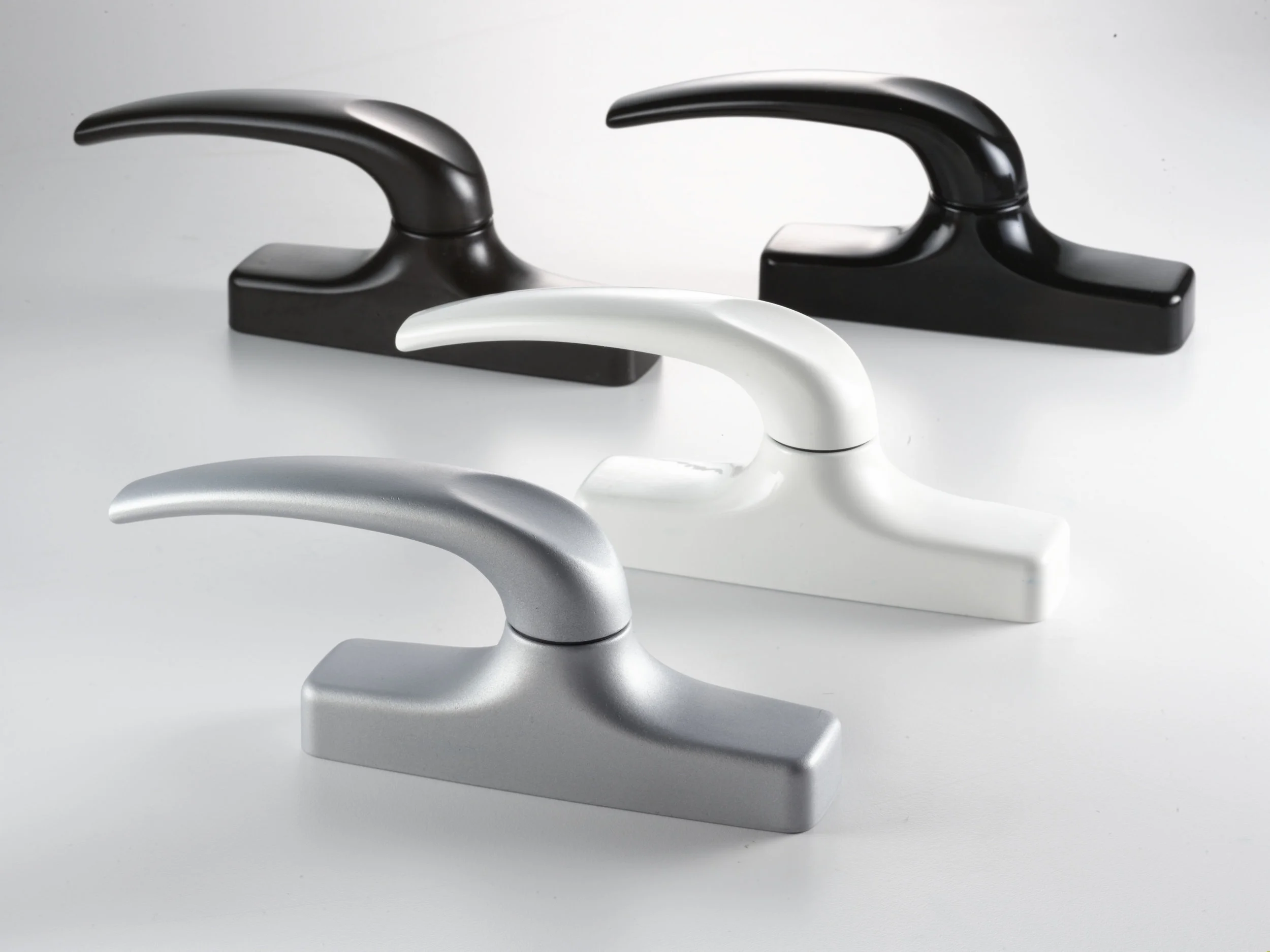

standard handles


Accessories

Muntins

Panning

Snap Trim


Testing

AAMa rating

DA-AW-60

Window test size

60" X 99"

Window depth

2.75"

Structural load

90 PSF

Air @ 6.27 PSF (CFM/FT2)

0.01

Water

12 PSF

Glass thickness

1"
